Product Details
The VC-K-065-1.5S-S1-4000 is a VC-series right angle spiral bevel gearbox with an integral motor mount and ratio of 1.5:1. It has a keyed hollow output shaft and standard backlash. Other output configurations are available. NOTE: The technical specs listed here are for a gearbox operating continuously (S1) with a maximum input speed of 4000 rpm.
| Gearbox Series |
VC |
| Gearbox Style |
K |
| Gearbox Size |
065 |
| Ratio |
1.5:1 |
| Backlash |
S |
| Duty Cycle |
S1 |
| Nominal Output Torque (Nm) |
5.40 |
| Max Acceleration Output Torque (Nm) |
17.0 |
| Emergency Output Torque (Nm) |
25.0 |
| Vent Filter Required for Output Speed (RPM) |
- |
| Max Input Speed (RPM) |
4,000 |
| Maximum Output Backlash (arcmin) |
20 |
| Allowable Radial Load (N) |
750 |
| Allowable Axial Load (N) |
375 |
| Weight (kg) |
2.0 |
| Efficiency at Load |
94-98% |
| Service Life |
15,000 hours |
| Housing Material |
steel |
| Lubrication |
synthetic oil |

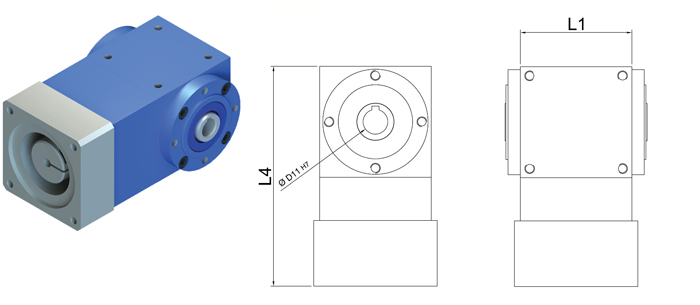

| D11 H7 (mm) |
12 |
| L1 (mm) |
65 |
| L4 (mm) |
134 |
| Notice |
Overall length values are approximate and will vary depending upon the motor. |
| Notice |
Drawings and information contained herein are for reference only. Please contact GAM for application specific drawings. |
