Product Details
The VC-T-090-006R-S1-1500 is a VC-series right angle spiral bevel gearbox with an integral motor mount and ratio of 6:1. It has a dual output shaft and reduced backlash. Other output configurations are available. NOTE: The technical specs listed here are for a gearbox operating continuously (S1) with a maximum input speed of 1500 rpm.
| Gearbox Series |
VC |
| Gearbox Style |
T |
| Gearbox Size |
090 |
| Ratio |
6:1 |
| Backlash |
R |
| Duty Cycle |
S1 |
| Nominal Output Torque (Nm) |
27.00 |
| Max Acceleration Output Torque (Nm) |
31.0 |
| Emergency Output Torque (Nm) |
45.0 |
| Vent Filter Required for Output Speed (RPM) |
>2200 |
| Max Input Speed (RPM) |
1,500 |
| Maximum Output Backlash (arcmin) |
10 |
| Allowable Radial Load (N) |
1,250 |
| Allowable Axial Load (N) |
625 |
| Weight (kg) |
4.5 |
| Efficiency at Load |
94-98% |
| Service Life |
15,000 hours |
| Housing Material |
steel |
| Lubrication |
synthetic oil |

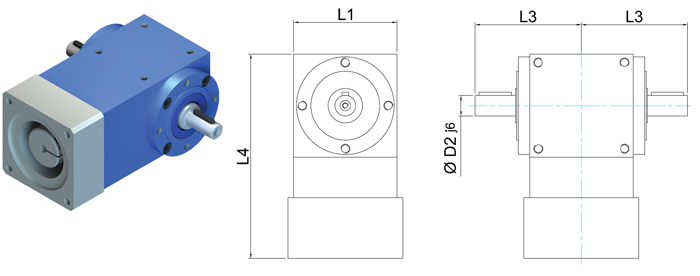

| D2 j6 (mm) |
18 |
| L1 (mm) |
90 |
| L3 (mm) |
95.00 |
| L4 (mm) |
185 |
| Notice |
Overall length values are approximate and will vary depending upon the motor. |
| Notice |
Drawings and information contained herein are for reference only. Please contact GAM for application specific drawings. |
