Product Details
The VC-T-045-004S-S1-3000 is a miniature VC-series right angle spiral bevel gearbox with an integral motor mount and ratio of 4:1. It has a dual output shaft and standard backlash. Other output configurations are available. NOTE: The technical specs listed here are for a gearbox operating continuously (S1) with a maximum input speed of 3000 rpm.
| Gearbox Series |
VC (mini) |
| Gearbox Style |
T |
| Gearbox Size |
045 |
| Ratio |
4:1 |
| Backlash |
S |
| Duty Cycle |
S1 |
| Nominal Output Torque (Nm) |
4.50 |
| Max Acceleration Output Torque (Nm) |
5.5 |
| Emergency Output Torque (Nm) |
8.0 |
| Vent Filter Required for Output Speed (RPM) |
- |
| Max Input Speed (RPM) |
3,000 |
| Maximum Output Backlash (arcmin) |
15 |
| Efficiency at Load |
94-98% |
| Service Life |
10,000 hours |
| Housing Material |
aluminum |
| Lubrication |
Synthetic Oil |

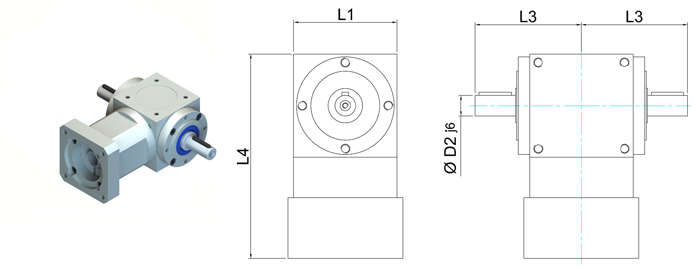

| D2 j6 (mm) |
10 |
| L1 (mm) |
45 |
| L3 (mm) |
57.50 |
| L4 (mm) |
Contact GAM |
| Notice |
Overall length values are approximate and will vary depending upon the motor. |
| Notice |
Drawings and information contained herein are for reference only. Please contact GAM for application specific drawings. |
| Former Type Code |
LL-T-045-004S-S1-3000 |
