Product Details
The VC-W-090-007S-S1-3000 is a VC-series right angle spiral bevel gearbox with an integral motor mount. It is a 2-stage gearbox with a integrated inline planetary gearbox for an overall ratio of 7:1. It has a single output shaft and standard backlash. Other output configurations are available. NOTE: The technical specs listed here are for a gearbox operating continuously (S1) with a maximum input speed of 3000 rpm.
| Gearbox Series |
VC |
| Gearbox Style |
W |
| Gearbox Size |
090 |
| Ratio |
7:1 |
| Backlash |
S |
| Duty Cycle |
S1 |
| Nominal Output Torque (Nm) |
38.00 |
| Vent Filter Required for Output Speed (RPM) |
>2200 |
| Max Input Speed (RPM) |
3,000 |
| Maximum Output Backlash (arcmin) |
30 |
| Allowable Radial Load (N) |
1,250 |
| Allowable Axial Load (N) |
625 |
| Weight (kg) |
7.7 |
| Efficiency at Load |
0.8924 |
| Service Life |
15000 |
| Housing Material |
cast iron |
| Lubrication |
synthetic oil |

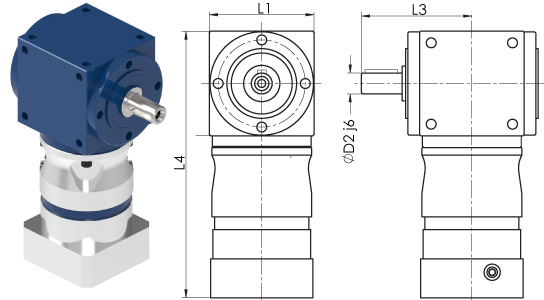

| D2 j6 (mm) |
18 |
| L1 (mm) |
90 |
| L4 (mm) |
230 |
| Notice |
Overall length values are approximate and will vary depending upon the motor. |
| Notice |
Drawings and information contained herein are for reference only. Please contact GAM for application specific drawings. |
