Product Details
The VC-W-200-006R-S1-4000 is a VC-series right angle spiral bevel gearbox with an integral motor mount and ratio of 6:1. It has a single output shaft and reduced backlash. Other output configurations are available. NOTE: The technical specs listed here are for a gearbox operating continuously (S1) with a maximum input speed of 4000 rpm.
| Gearbox Series |
VC |
| Gearbox Style |
W |
| Gearbox Size |
200 |
| Ratio |
6:1 |
| Backlash |
R |
| Duty Cycle |
S1 |
| Nominal Output Torque (Nm) |
190.00 |
| Max Acceleration Output Torque (Nm) |
315.0 |
| Emergency Output Torque (Nm) |
625.0 |
| Vent Filter Required for Output Speed (RPM) |
>900 |
| Max Input Speed (RPM) |
4,000 |
| Maximum Output Backlash (arcmin) |
10 |
| Allowable Radial Load (N) |
8,000 |
| Allowable Axial Load (N) |
4,000 |
| Weight (kg) |
38.5 |
| Efficiency at Load |
94-98% |
| Service Life |
15,000 hours |
| Housing Material |
steel |
| Lubrication |
synthetic oil |

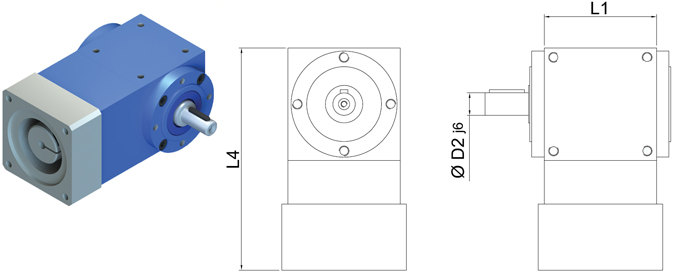

| D2 j6 (mm) |
42 |
| L1 (mm) |
200 |
| L4 (mm) |
362 |
| Notice |
Drawings and information contained herein are for reference only. Please contact GAM for application specific drawings. |
