Product Details
PMK Parallel Mounting Kits are designed to save space and reduce overall length with a wrap-around design that mounts the servo motor parallel to a ball screw actuator. The PMK61C has a rated torque of 46 Nm.
| Maximum Output Torque (Nm) |
46.0 |
| Shaft Diameter Min (mm) |
14 |
| Shaft Diameter Max (mm) |
38.1 |

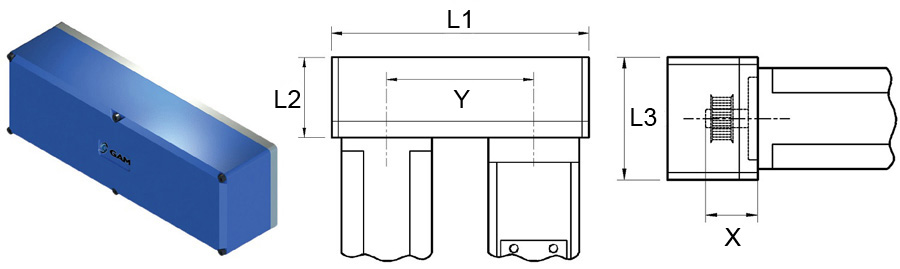

| X Maximum Shaft Length (mm) |
90 |
| Y Center to Center (mm) |
280 |
| Maximum Motor Bolt Circle (mm) |
165 |
| L1 (mm) |
450 |
| L2 (mm) |
111 |
| L3 (mm) |
152.4 |
| Maximum Speed (rpm) |
6,000 |
| Pulley Ratio |
1:1 |
| Recommended Belt Pull (N) |
764 |
| Notice |
Drawings and information contained herein are for reference only. Please contact GAM for application specific drawings. |
