Designed for AGVs & AMRs
GML Series Coaxial Wheel Drive
Download GML CAD Models
GML Series Coaxial Wheel Drive
The GML Series Wheel Drive Gear Reducer uses planetary gearing for a coaxial system. The motor is located directly behind the wheel without axle offset. This results in a cylindrical structure from the wheel to the motor.
This drive can be used as a direct drive or as a differential drive and can be combined with a steering drive to form a drive-steer unit.
Features
- Compact design with very short overall length
- Motor mount customized to your motor, no additional coupling needed
- Directly mount wheel to the gearbox output flange
- Rotating hub design eliminates overhung load, ideal for pulleys or wheel drives
- Integrated wheel bearing for high loads
- Very high efficiency
- 3 frame sizes available
- Fully sealed and maintenance-free
- Optional wheel available

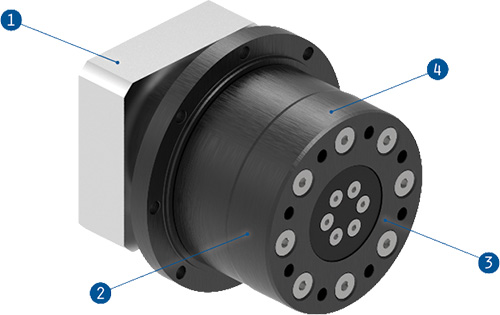

- Integrated Motor Mount inlcludes customized adapter plate and clamp collar for quick and easy motor mounting
- Integrated Wheel Bearings for high carrying weight capacity
- Flange Mount directly mount the wheel to the output flange
- Rotating Hub provides a pilot surface for the wheel and eliminates overhung load
Get CAD Models & Tech Specs with our Online Product Catalog
search our catalogWheel Drive Gearboxes for Mobile Robots
Learn about other GAM gearboxes for wheel drives on our Warehouse Automation page
