ZERO BACKLASH, HIGH TORQUE DENSITY

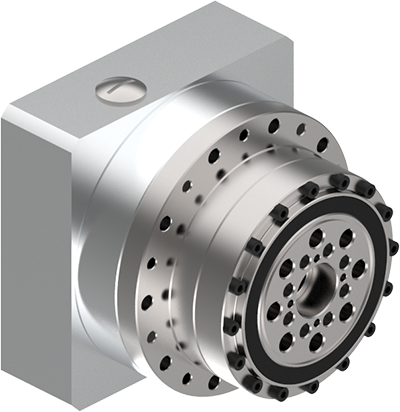

Strain Wave (Harmonic) Gearhead with Integrated Motor Mount

GAM now offers strain wave gearhead with integrated motor mount for our GSL Series Zero-Backlash Strain Wave (Harmonic) gearboxes, including the GSL-CM. Our GSL-CM line comes in a variety of sizes and reduction ratios, with custom configurations available. Like our other GSL series products, our GSL-CM line uses harmonic gearing to provide high torque with zero backlash. Our GLS-CM models have the same lightweight, compact design – just with an integrated motor mount for simple installation.

Configure and download GSL-CM Models

GSL-CM Features

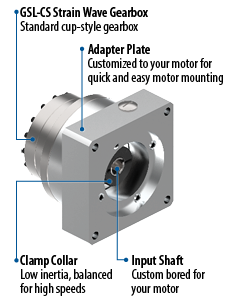

The GSL-CM Series package includes the gearbox, adapter plate, input shaft, and customized clamp collar.

Features include:

Compact design
Integrated motor mount to fit your motor
Available in frame sizes 014 to 032 and ratios 50:1 to 160:1.
Standard cup-style gearbox
Adapter plate and input shaft customized to your motor
Low-inertia clamp collar balanced for high speeds

We can customize the configuration of your strain wave gearhead integrated motor mount to suit your needs, we provide downloadable CAD drawings of your product with a clear outline of the specs and features.

Benefits

Our integrated motor mount gearhead takes the hassle out of mounting your gearbox. The GSL-CM incorporates an integrated motor mount, simplifying the gearbox + adapter + motor stack into a much cleaner path from concept to build.

Easy installation: Built-in motor mounts enable quick assembly, and the integrated clamp collar simplifies connection of the motor shaft to the gearbox input. We offer motor mounts for any motor available for our GSL series.
Proper alignment: A built-in mount means you don’t need to worry about misalignment or improper installation.
Reduced noise and vibration: The integrated mount works seamlessly with your gearbox, reducing noise and vibration during operation.
Compact motion control: Our integrated motor models allow for precision positioning and compact motion control.
Zero backlash: Like the rest of our GSL series, the GSL-CM integrated motor models offer high positional accuracy and repeatability.

Request a Quote

Get CAD Models & Tech Specs with our Online Product Catalog

search our catalog

Integrated Harmonic Gearhead Gearbox Applications

Our zero-backlash gearboxes are designed for robotics and high-precision applications, including strain wave (harmonic), cycloidal, or our revolutionary zero-backlash planetary gearboxes.

We serve the following industries:

With its broad range of sizes and motor configurations, GAM’s strain wave gearboxes can handle a diverse range of applications, from high-precision processes like prescription drug sorting to large-scale operations like aerospace assembly.

Contact GAM to request a quote on a custom integrated motor mount strain wave (harmonic) gearbox.
